AJAX Hub 2 Plus Black

Ajax Hub 2 Plus Black

The Ajax Hub 2 Plus Black is an intelligent control panel designed to manage Ajax wireless security systems while supporting visual alarm verification through MotionCam detectors. The Ajax Hub 2 Plus combines Ethernet and dual SIM communication with 4G, 3G, and 2G support to ensure reliable alarm delivery and continuous system connectivity.

Designed for professional security installations, the hub manages connected devices, users, automation scenarios, and video surveillance integration from a single control unit.

Alarm Management and Visual Verification

The hub supports MotionCam detectors for visual alarm verification, allowing users and monitoring stations to receive image confirmation during alarm events.

System capabilities include:

• Support for up to 100 connected devices
• Up to 25 cameras or DVRs
• Support for 50 users
• Up to 50 rooms
• 9 security groups
• 32 automation scenarios
• Support for up to 5 ReX range extenders

Because visual verification improves alarm response accuracy, the hub enhances overall security system reliability.

Wireless Communication Technology

The Ajax Hub 2 Plus uses advanced Jeweller and Wings radio technologies for secure wireless communication.

Jeweller radio technology features:

• Communication range up to 2,000 m in open space
• Two-way communication between devices
• Operating frequencies: 868.0 – 868.6 MHz
• Self-adjusting RF output power up to 25 mW
• AES block encryption
• Detector polling interval from 12 to 300 seconds
• Frequency hopping protection

Wings radio technology enables:

• Transmission of visual alarm confirmations
• Delivery verification of transmitted packages

Consequently, the system maintains stable and secure communication with connected devices.

Communication Channels

The hub supports multiple communication methods for reliable alarm transmission.

Communication options include:

• Ethernet connection
• Dual SIM support
• 4G connectivity
• 3G connectivity
• 2G connectivity

Notification methods:

• SMS notifications
• Push notifications
• Phone call alerts

Alarm signals are delivered within 0.15 seconds, while switching between SIM cards takes approximately 4 minutes.

CMS communication supports:

• Contact ID
• SIA protocols

Therefore, the system remains suitable for professional monitoring environments.

Power Supply and Backup Battery

The Ajax Hub 2 Plus operates from a standard mains power supply and includes a built-in backup battery for uninterrupted operation during power failures.

Power specifications:

• 110–240 V AC mains power
• Optional 12 V PSU support
• Built-in Li-Ion 2 Ah backup battery
• Up to 16 hours offline operation with Ethernet disabled
• Power consumption: 10 W

Because backup power is essential in security systems, the hub continues operating during temporary power interruptions.

Device Specifications

Technical specifications:

• Classification: Radio channel central unit with visual alarm verification support
• Installation type: Indoor
• Operating system: OS Malevich
• Operating temperature: −10°C to +40°C
• Dimensions: 163 × 163 × 36 mm
• Weight: 362 g

Warranty:

• 24-month replacement and repair warranty
• Batteries excluded from warranty coverage

Compatibility

Compatible with:

• Ajax MotionCam detectors
• Ajax ReX range extenders
• Ajax wireless security devices
• Ajax video surveillance integrations

Complete Set

Included in the box:

• Ajax Hub 2 Plus intelligent control panel

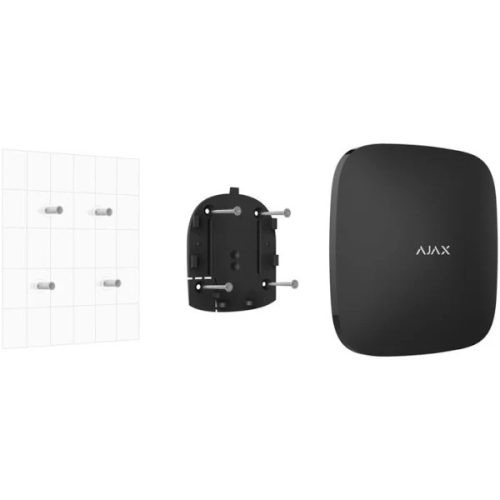

• SmartBracket mounting panel
• Power cable
• Ethernet cable
• Installation kit
• SIM card (depending on region)
• User guide

Professional Security Solution

The Ajax Hub 2 Plus forms the central control unit of a professional Ajax security system, combining wireless communication, automation, and visual alarm verification in a single platform.
