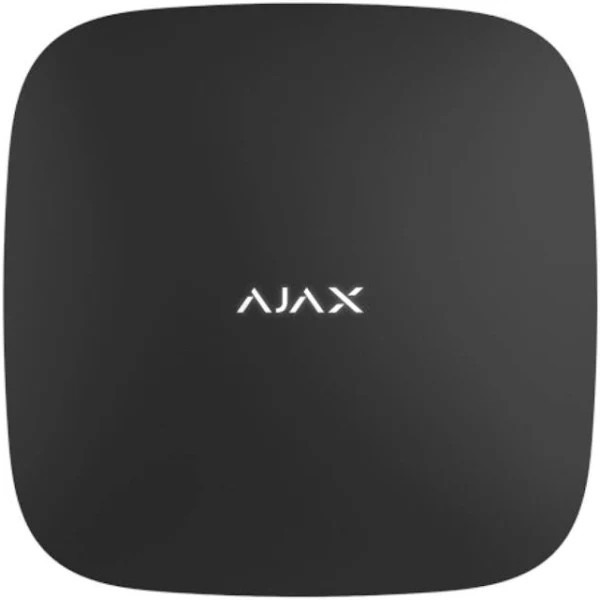

Ajax Hub 2 Black

Ajax Hub 2 Black

The Ajax Hub 2 Black is a powerful ajax control panel designed to manage security systems with integrated visual alarm verification. It acts as the central unit, coordinating detectors, users, and communication channels to ensure fast and reliable alarm processing.

With support for MotionCam detectors, the hub enables users to verify alarms through images, improving response accuracy and security management.

System Control Technology

This ajax control panel manages and coordinates all system components.

• Supports up to 100 connected devices
• Manages up to 50 users and rooms
• Supports up to 9 security groups
• Handles up to 32 automation scenarios
• Supports MotionCam detectors for photo verification

This ensures efficient system management for residential and commercial installations.

Wireless Communication

The hub uses Ajax communication technologies for reliable performance.

• Jeweller radio communication range up to 2,000 m
• Wings radio technology for image transmission
• Two-way communication with devices
• Frequency hopping for signal stability
• AES encryption for secure communication

This ensures stable and secure system operation.

External Communication Channels

The hub supports multiple communication options.

• Ethernet connection
• Dual SIM support (2G)
• Automatic switching between SIM cards

This provides redundancy and continuous connectivity.

Security Protection

The hub includes advanced protection features:

• Tamper detection
• Fraud protection
• Jamming detection
• Remote configuration and testing

These features ensure system integrity.

Power Supply

• Power supply: 110–240 V AC or 12 V (with PSU)
• Backup battery: Up to 16 hours (Li-Ion 2 Ah)
• Power consumption: 10 W

This ensures continuous operation during power interruptions.

Environmental Monitoring

The hub operates within controlled environmental conditions and supports system-wide monitoring via connected devices.

Device Specifications

• Connected devices: Up to 100
• Cameras/DVRs supported: Up to 25
• Users: Up to 50
• Rooms: Up to 50
• Security groups: Up to 9
• Scenarios: Up to 32
• Alarm signal delivery time: 0.15 seconds
• Operating temperature: -10°C to +40°C
• Dimensions: 163 × 163 × 36 mm
• Weight: 362 g

Compatibility

Compatible with:

• All Ajax wireless detectors
• Ajax MotionCam detectors
• Ajax range extenders (ReX)
• Ajax mobile applications

Complete Set

• Ajax Hub 2 control panel
• SmartBracket mounting panel
• Power cable
• Ethernet cable
• Installation kit
• SIM card (region dependent)
• User guide

Professional Security Solution

The Ajax Hub 2 Black is a central component of modern security systems, offering reliable communication and visual alarm verification. It is ideal for installations requiring enhanced monitoring and fast response capabilities.
