Ajax Hub 2 Plus White
R7 849,90
The Ajax Hub 2 Plus White is an advanced ajax control panel designed to manage and monitor complete security systems with photo verification support. It connects detectors, cameras, and users while ensuring fast and secure alarm communication.
β’ Supports up to 200 devices
β’ Visual alarm verification with MotionCam
β’ Multiple communication channels (LTE, Wi-Fi, Ethernet)
β’ Supports up to 100 cameras and DVRs
β’ Battery backup up to 15 hours
Professional security systems available from Security Expert Online.
22 in stock
1948510-40-WH1
Additional Information
Additional information
| Weight | 0,850 kg |
|---|---|
| Dimensions | 23,9 × 18,9 × 5,2 cm |
| Brand | Ajax Security |
| Color | White |
Description
Ajax Hub 2 Plus White
The Ajax Hub 2 Plus White is a high-performance ajax control panel designed to manage complex security systems with advanced communication and visual alarm verification. It serves as the central unit, coordinating all connected devices, detectors, and cameras within the Ajax ecosystem.
With support for multiple communication channels and intelligent monitoring, the hub ensures reliable system performance in both residential and commercial environments.
System Control Technology
This ajax control panel manages all security devices and system operations.
β’ Supports up to 200 connected devices
β’ Manages up to 25 security groups
β’ Supports up to 200 users
β’ Handles up to 64 automation scenarios
β’ Supports MotionCam detectors for photo verification
This allows full control of large-scale security systems.
Wireless Communication
The hub uses advanced Ajax communication technologies.
β’ Jeweller radio communication range up to 2,000 m
β’ Wings radio technology for photo transmission
β’ Two-way communication with devices
β’ Frequency hopping for signal stability
β’ AES encryption for secure data transfer
This ensures reliable and secure communication across the system.
External Communication Channels
The hub supports multiple communication options for redundancy.
β’ LTE with dual SIM support
β’ 2G and 3G fallback
β’ Ethernet connection
β’ Wi-Fi (802.11 b/g/n)
This ensures continuous connectivity even if one channel fails.
Security Protection
The hub includes advanced anti-sabotage features:
β’ Tamper detection (opening and removal)
β’ Jamming detection and notifications
β’ Fraud protection
β’ Remote configuration and testing
These features ensure system integrity and protection.
Power Supply
β’ Power supply: 110β240 V AC
β’ Backup battery: Up to 15 hours (Li-Ion 3 Ah)
β’ Power consumption: 10 W
This ensures uninterrupted operation during power outages.
Environmental Monitoring
The system supports monitoring through connected detectors and includes temperature control within operational limits.
Device Specifications
β’ Connected devices: Up to 200
β’ Cameras/DVRs supported: Up to 100
β’ Users: Up to 200
β’ Rooms: Up to 50
β’ Security groups: Up to 25
β’ Scenarios: Up to 64
β’ Alarm signal delivery time: 0.15 seconds
β’ Operating temperature: -10Β°C to +40Β°C
β’ Dimensions: 163 Γ 163 Γ 36 mm
β’ Weight: 351 g
Compatibility
Compatible with:
β’ All Ajax wireless detectors
β’ Ajax MotionCam detectors
β’ Ajax range extenders (ReX)
β’ Ajax mobile applications (iOS and Android)
Complete Set
β’ Ajax Hub 2 Plus control panel

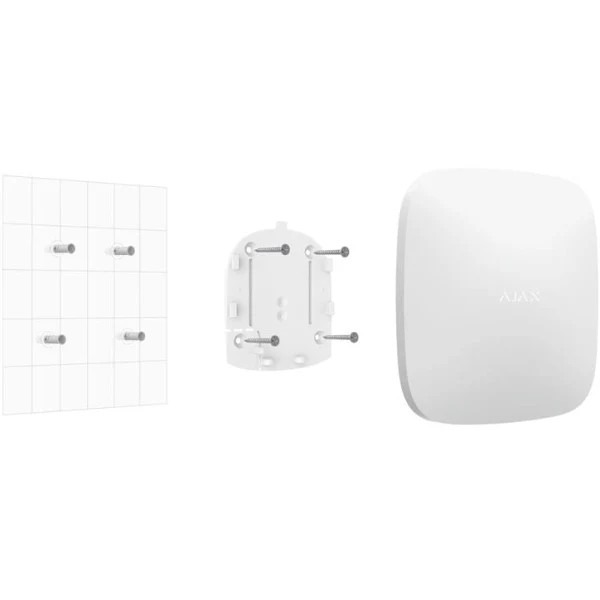

β’ SmartBracket mounting panel
β’ Power cable
β’ Ethernet cable
β’ Installation kit
Professional Security Solution
The Ajax Hub 2 Plus White is the central component of a professional security system, providing reliable communication, advanced automation, and visual alarm verification. It is ideal for large residential and commercial installations.
