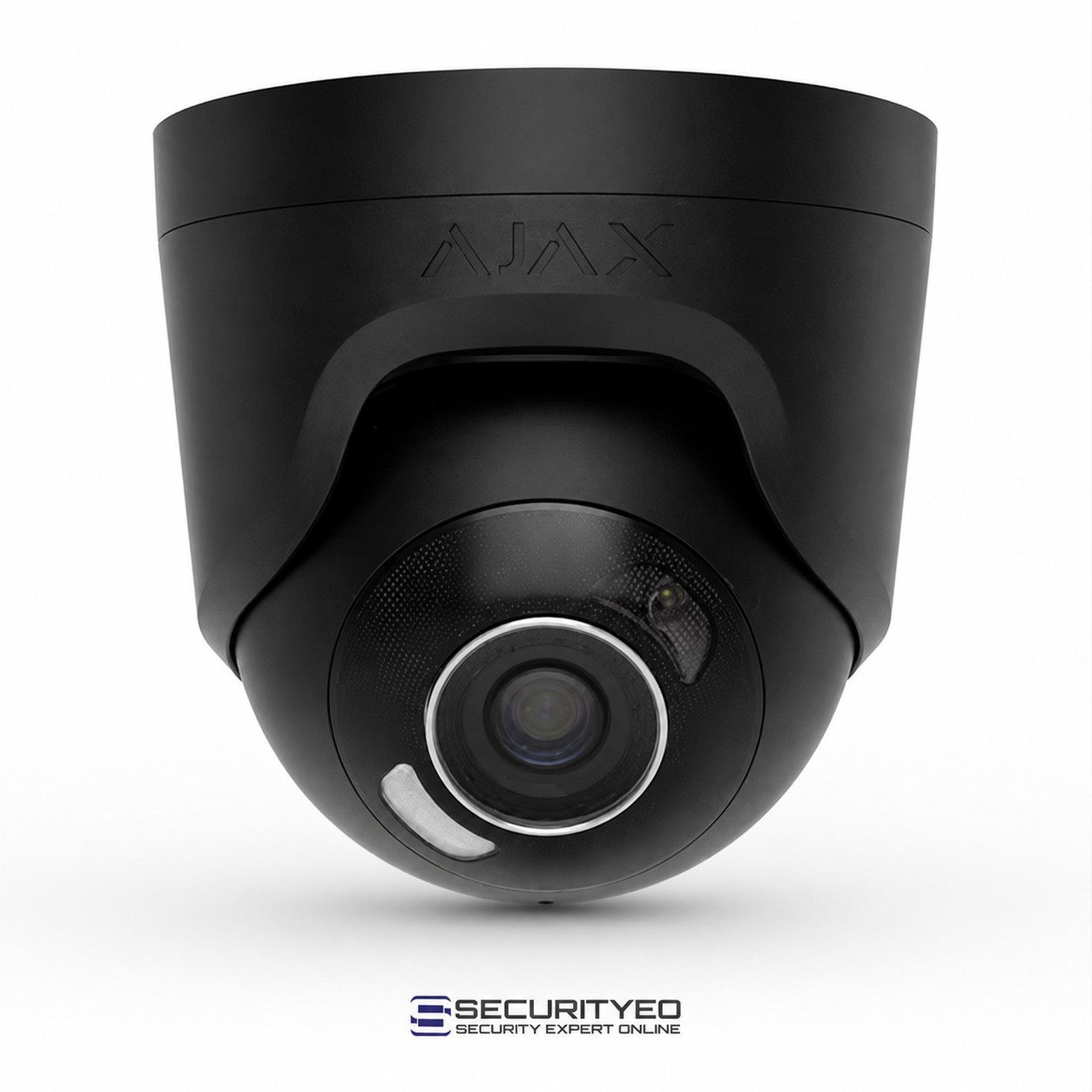

Ajax TurretCam HL 8MP 2.8mm Black

Ajax TurretCam HL 8MP 2.8mm Black

The Ajax TurretCam Black is a wired 8MP AI-powered IP security camera designed for professional indoor and outdoor surveillance. Its 2.8mm fixed lens provides a wide 100°–110° viewing angle, while the 8MP sensor delivers video resolution up to 3840 × 2160 at 20 frames per second.

Additionally, hybrid illumination combines infrared and white light to provide detailed surveillance during both daytime and nighttime conditions.

Hybrid Illumination

The TurretCam HL automatically switches between infrared and white light illumination according to motion detection or recognised objects.

Both illumination systems provide coverage up to 50 metres.

The camera therefore supports:

• Infrared night monitoring
• White light illumination
• Full-colour nighttime footage
• Improved object recognition in low light
• Visible illumination that may help deter intruders

As a result, installers can provide detailed video monitoring across changing lighting conditions.

AI Object Recognition

Built-in AI allows the camera to recognise:

• People
• Vehicles
• Pets

Therefore, the system can focus on relevant activity instead of relying only on basic movement detection.

The camera also supports:

• Motion detection
• AI-powered recognition
• Detector alarms
• Alarm verification
• Automation scenarios
• Siren activation through supported detection scenarios

TrueWDR Image Processing

The camera uses TrueWDR hardware and software image processing.

TrueWDR helps balance scenes that contain both bright and dark areas. Consequently, the camera can retain more useful detail in demanding lighting environments such as entrances, gates, windows and outdoor areas.

Ajax TurretCam Black Video Transmission

Ajax uses proprietary JetSparrow technology for fast and secure peer-to-peer video transmission.

The system supports:

• Instant live viewing
• Fast archive navigation
• Event timeline navigation
• Calendar-based archive browsing
• Search filters
• Dual video streams
• Quick video clip export
• Up to five simultaneous live-view channels

Furthermore, Ajax apps allow remote camera configuration and real-time system health monitoring.

Video Storage

The TurretCam HL supports local and network-based recording.

Storage options include:

• Ajax NVR
• MicroSD card installed directly in the camera

The camera supports microSD cards up to 256GB.

Importantly, the camera can operate without an Ajax NVR when a suitable microSD card is installed.

Security Protection

Ajax integrates multiple security technologies to protect video transmission and user access.

These include:

• Passwordless camera authentication through mutual TLS
• TLS-encrypted video streams
• User-controlled access to video content
• Secure video export with digital signature verification
• Passcode protection
• Supported biometric authentication
• Two-factor authentication
• Session controls
• NDAA-compliant components and protocols

Therefore, the camera integrates video surveillance with Ajax account and system security measures.

Built-In Microphone

The camera includes a built-in digital microphone for audio capture.

The microphone supports the G.711 audio codec, allowing compatible systems to record audio together with surveillance video where appropriate.

Network Connectivity

The TurretCam HL uses a wired Ethernet connection.

Network specifications include:

• Ethernet: 10/100 Mbps RJ-45
• Bitrate: Up to 100 Mbps full-duplex
• Video Streaming: RTSP
• ONVIF: Profile S
• Video Compression: H.265 and H.264
• JetSparrow: Proprietary Ajax video protocol

Additionally, ONVIF and RTSP support provide integration options with compatible third-party video systems.

Power Supply

The camera supports:

• DC Power: 8–14V
• PoE: IEEE 802.3at/af
• Maximum Power Consumption: Up to 8.5W

PoE allows compatible network infrastructure to carry both data and power through the Ethernet connection. Therefore, installers can simplify cabling in suitable installations.

Device Specifications

• Camera Type: Wired AI-powered security IP camera
• Resolution: 8MP
• Maximum Resolution: 3840 × 2160
• Frame Rate: Up to 20 fps at 4K UHD
• Lens: 2.8mm fixed
• Viewing Angle: 100°–110°
• Image Processing: TrueWDR
• AI Recognition: People, vehicles and pets
• Motion Detection: Built-in software
• IR Illumination: Up to 50m
• White Light Illumination: Up to 50m
• Video Compression: H.265 and H.264
• Audio: Built-in digital microphone
• Audio Codec: G.711
• Video Stream: RTSP
• ONVIF: Profile S
• Simultaneous Live View: Up to 5 channels
• MicroSD Support: Up to 256GB
• Ethernet: 10/100 Mbps RJ-45
• PoE: IEEE 802.3at/af
• Power Supply: 8–14V DC
• Maximum Power Consumption: Up to 8.5W
• Dimensions: 103 × 98 × 98mm
• Weight: 475g
• Protection Class: IP66
• Impact Protection: IK08
• Operating Temperature: -30°C to +60°C
• Operating Humidity: Up to 90%
• Colour: Black
• Compliance: CE, RoHS and NDAA

DORI Distance

For the 8MP / 2.8mm version:

• Detection: Up to 90m
• Observation: Up to 36m
• Recognition: Up to 18m
• Identification: Up to 9m

These DORI distances provide a useful reference when designing camera placement for different surveillance objectives.

Compatibility

The TurretCam HL integrates with the Ajax video surveillance ecosystem.

Supported integration includes:

• Ajax NVR
• Ajax apps
• Ajax Cloud
• Compatible Ajax security systems
• Compatible third-party NVR systems through ONVIF / RTSP
• Compatible third-party VMS platforms through ONVIF / RTSP

The camera also supports local recording through an installed microSD card.

Complete Set

The package includes:

• Ajax TurretCam HL 8MP 2.8mm Black
• Installation template
• Installation kit
• Quick start guide

Professional Security Solution

The Ajax TurretCam HL 8MP 2.8mm Black combines 4K UHD surveillance, AI object recognition, hybrid illumination and TrueWDR image processing in a robust professional IP camera.

Furthermore, its wide 2.8mm lens makes it particularly suitable for monitoring larger areas such as entrances, courtyards, parking areas, commercial spaces and property perimeters.

The black IP66 and IK08 enclosure provides a discreet installation option while supporting demanding indoor and outdoor environments.
