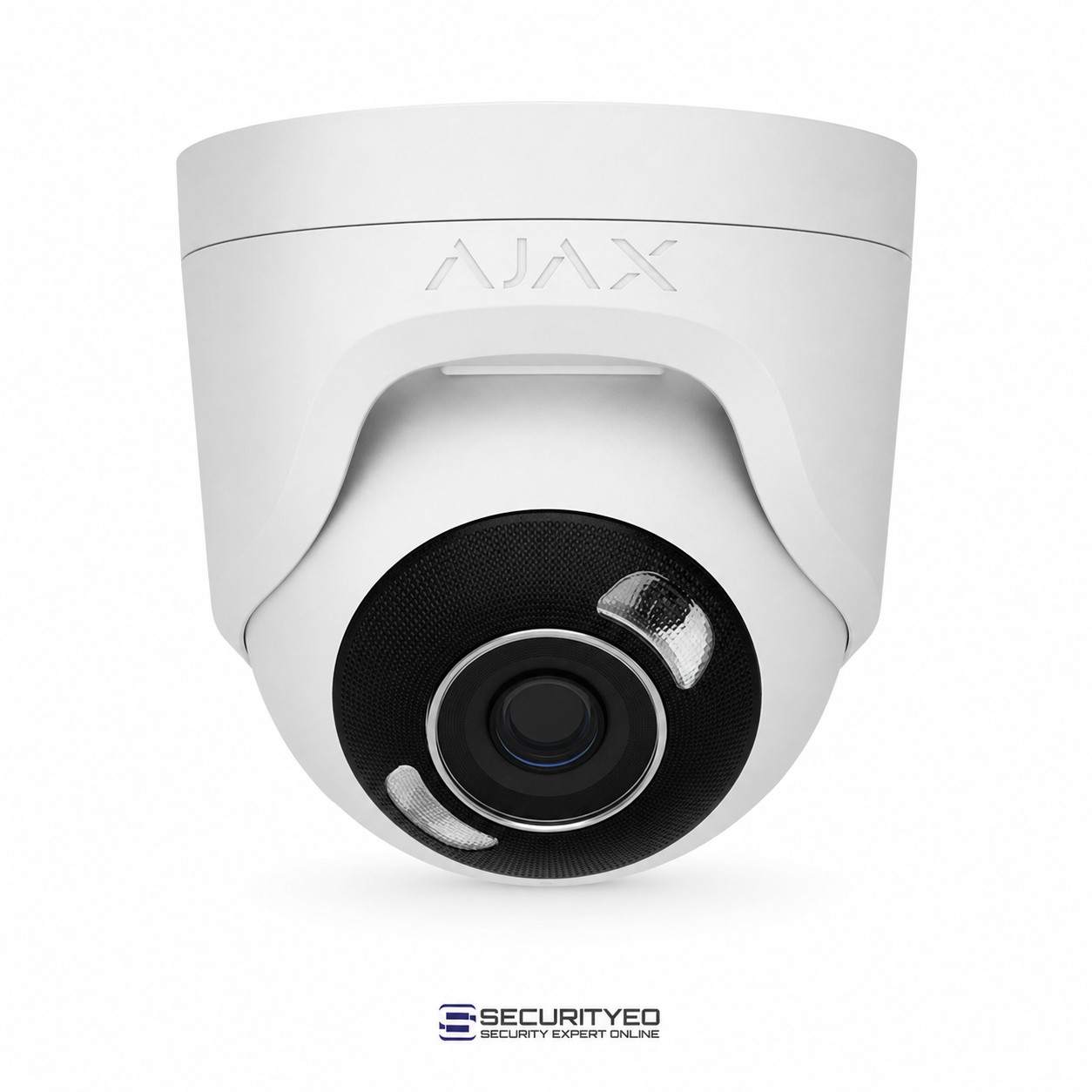

Ajax TurretCam HL 5MP 4mm White

Ajax TurretCam HL 5MP 4mm White

The Ajax TurretCam White 5MP is a wired AI-powered IP security camera designed for professional indoor and outdoor surveillance. Its 4mm fixed lens provides a focused 75°–85° viewing angle, while the 5MP image sensor delivers resolution up to 2880 × 1620 at 25 frames per second.

Additionally, hybrid illumination combines infrared and white light to maintain clear video across changing lighting conditions. The white enclosure also provides a clean installation option for light-coloured ceilings, walls and exterior surfaces.

Hybrid Illumination

The TurretCam HL automatically switches between infrared and white light illumination according to motion detection or recognised objects.

Both illumination systems provide a range of up to 50 metres.

Therefore, the camera supports:

• Infrared night surveillance
• White light illumination
• Full-colour nighttime footage
• Improved object recognition in low light
• Visible illumination that may help deter intruders

As a result, users can maintain useful visual detail during both daytime and nighttime conditions.

AI Object Recognition

Built-in AI enables the camera to identify:

• People
• Vehicles
• Pets

Consequently, the system can focus on relevant activity instead of relying only on general movement detection.

The camera also supports:

• Motion detection
• AI-powered object recognition
• Detector alarms
• Alarm verification
• Automation scenarios
• Siren activation through supported detection scenarios

TrueWDR Image Processing

The camera uses TrueWDR hardware and software image processing to manage scenes with significant differences between bright and dark areas.

Therefore, it can retain useful detail around entrances, gates, windows, driveways and other areas where lighting conditions may change significantly.

Secure Video Transmission

Ajax uses proprietary JetSparrow technology for fast and secure video transmission.

The system supports:

• Instant live viewing
• Fast archive navigation
• Event timeline navigation
• Calendar-based archive browsing
• Search filters
• Dual video streams
• Quick video clip export
• Up to five simultaneous live-view channels

Furthermore, Ajax apps allow remote camera configuration, motion detection zone adjustment and real-time system health monitoring.

Visual Verification Of Ajax Alarms

The TurretCam HL supports high-resolution visual verification of Ajax system alarms through video scenarios.

As a result, users can move directly from an alarm notification to relevant surveillance footage.

Additionally, the camera can synchronise with supported Ajax security modes and automation scenarios for integrated monitoring.

Video Storage

The TurretCam HL supports both local and network-based video recording.

Storage options include:

• Ajax NVR
• MicroSD card installed directly in the camera

The camera supports microSD cards up to 256GB.

Importantly, the camera can operate without an Ajax NVR when a compatible microSD card is installed.

Security Protection

Ajax incorporates several technologies to protect camera access, video transmission and recorded content.

These include:

• Passwordless camera authentication through mutual TLS
• TLS-encrypted video streams
• User-controlled access to video content
• Secure video export with digital signature verification
• Passcode protection
• Supported biometric authentication
• Two-factor authentication
• Session controls
• NDAA-compliant components and protocols

Therefore, the camera combines professional surveillance with multiple layers of account and communication security.

Built-In Microphone

The TurretCam HL includes a built-in digital microphone.

The microphone supports the G.711 audio codec, allowing compatible installations to capture audio together with surveillance footage where appropriate.

Network Connectivity

The camera uses a wired Ethernet connection for video transmission and system communication.

Network specifications include:

• Ethernet: 10/100 Mbps RJ-45
• Bitrate: Up to 100 Mbps full-duplex
• Video Stream: RTSP
• ONVIF: Profile S
• Video Compression: H.265 and H.264
• JetSparrow: Proprietary Ajax video protocol

Additionally, ONVIF and RTSP support provide integration options with compatible third-party NVR and VMS platforms.

Power Supply

The TurretCam HL supports:

• DC Power: 8–14V
• PoE: IEEE 802.3at/af
• Maximum Power Consumption: Up to 8.5W

PoE allows compatible network equipment to provide both power and network connectivity through an Ethernet cable. Therefore, installers can simplify cabling in suitable installations.

Device Specifications

• Camera Type: Wired AI-powered security IP camera
• Resolution: 5MP
• Maximum Resolution: 2880 × 1620
• Frame Rate: Up to 25 fps at 3K UHD
• Lens: 4mm fixed
• Viewing Angle: 75°–85°
• Image Processing: TrueWDR
• AI Recognition: People, vehicles and pets
• Motion Detection: Built-in software
• IR Illumination: Up to 50m
• White Light Illumination: Up to 50m
• Video Compression: H.265 and H.264
• Audio: Built-in digital microphone
• Audio Codec: G.711
• Video Stream: RTSP
• ONVIF: Profile S
• Simultaneous Live View: Up to 5 channels
• MicroSD Support: Up to 256GB
• Ethernet: 10/100 Mbps RJ-45
• Bitrate: Up to 100 Mbps full-duplex
• PoE: IEEE 802.3at/af
• Power Supply: 8–14V DC
• Maximum Power Consumption: Up to 8.5W
• Dimensions: 103 × 98 × 98mm
• Weight: 475g
• Protection Class: IP66
• Impact Protection: IK08
• Operating Temperature: -30°C to +60°C
• Operating Humidity: Up to 90%
• Colour: White
• Compliance: CE, RoHS and NDAA

DORI Distance

For the 5MP / 4mm version:

• Detection: Up to 86m
• Observation: Up to 34.4m
• Recognition: Up to 17.2m
• Identification: Up to 8.6m

Therefore, the 4mm lens provides a more focused field of view and greater surveillance distance than the wider 2.8mm version.

Compatibility

The TurretCam HL integrates with the Ajax video surveillance ecosystem.

Supported integration includes:

• Ajax NVR
• Ajax apps
• Ajax Cloud
• Compatible Ajax security systems
• Compatible third-party NVR systems through ONVIF / RTSP
• Compatible third-party VMS platforms through ONVIF / RTSP

Furthermore, the camera can record locally to an installed microSD card without requiring an Ajax NVR.

Complete Set

The package includes:

• Ajax TurretCam HL 5MP 4mm White
• Installation template
• Installation kit
• Quick start guide

Professional Security Solution

The Ajax TurretCam HL 5MP 4mm White combines 3K UHD surveillance, AI-powered object recognition, hybrid illumination and TrueWDR image processing in a professional IP camera.

Furthermore, its 4mm lens provides a more focused viewing angle and longer DORI distances than the 2.8mm model. Therefore, it is well suited to monitoring entrances, gates, driveways, corridors, parking areas and perimeter zones where greater distance detail is required.

The white IP66 and IK08 enclosure provides a clean, durable finish for professional residential and commercial installations.
