Ajax Transmitter Module for Third-Party Integration
R1 006,25
The Ajax Transmitter Module for Third-Party Integration is a wireless ajax transmitter module designed to connect wired detectors to the Ajax security system. It enables integration of third-party devices such as motion detectors, gas sensors, and IR barriers into a unified wireless security network.
β’ Integrates wired third-party detectors
β’ Wireless communication up to 1,600 m
β’ Supports multiple alarm types
β’ Battery life up to 5 years
β’ Compact design for indoor and outdoor use
Professional security solutions available from Security Expert Online.
Out of stock
1938184-18-NC1
Additional Information
Additional information
| Brand | Ajax Security |
|---|---|
| Color | White |
Description
Ajax Transmitter Module for Third-Party Integration
The Ajax Transmitter Module for Third-Party Integration is a versatile ajax transmitter module designed to extend the functionality of Ajax security systems. It allows wired third-party detectors to be connected wirelessly, enabling seamless integration into the Ajax ecosystem.

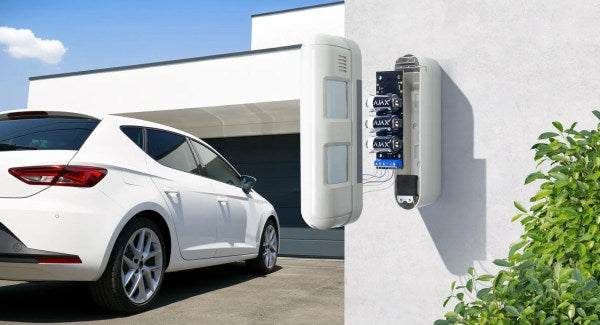

This module is suitable for connecting devices such as outdoor motion detectors, IR barriers, gas sensors, liquid level detectors, and other wired security or automation devices.
Integration Technology
This ajax transmitter module enables connection of third-party devices through wired inputs.
Supported integrations include:
β’ Outdoor motion detectors
β’ Infrared (IR) barriers
β’ Gas detectors
β’ Liquid level sensors
β’ Thermal relays and other wired devices
The module converts wired signals into secure wireless communication within the Ajax system.
Wireless Communication
The device operates using Ajax Jeweller radio technology.
β’ Communication range up to 1,600 m in open space
β’ Two-way communication with the hub
β’ Operating frequency: 868.0 β 868.6 MHz
β’ RF output power up to 20 mW
β’ AES encryption for secure transmission
This ensures stable and secure communication across the system.
Security Protection
The module includes advanced protection features:
β’ Fraud protection
β’ Jamming detection
β’ Removal detection via accelerometer
β’ Remote configuration and testing
These features ensure reliable system operation and protection against interference.
Power Supply
β’ Power supply: 3 Γ CR123A batteries (3 V)
β’ Battery life: Up to 5 years
β’ Additional output: 3.3 V terminals for connected devices
The device also includes a battery charge indicator for monitoring power status.
Environmental Monitoring
A built-in temperature sensor allows monitoring of environmental conditions where the module is installed.
Device Specifications
β’ Alarm inputs: 1
β’ Tamper inputs: 1
β’ Alarm signal delivery time: 0.15 seconds
β’ Operating temperature: -25Β°C to +50Β°C
β’ Humidity: Up to 75%
β’ Installation: Indoor or outdoor use
β’ Dimensions: 100 Γ 39 Γ 22 mm
β’ Weight: 74 g
β’ Certification: CE
Compatibility
Compatible with:
β’ All Ajax hubs
β’ Ajax range extenders
Complete Set

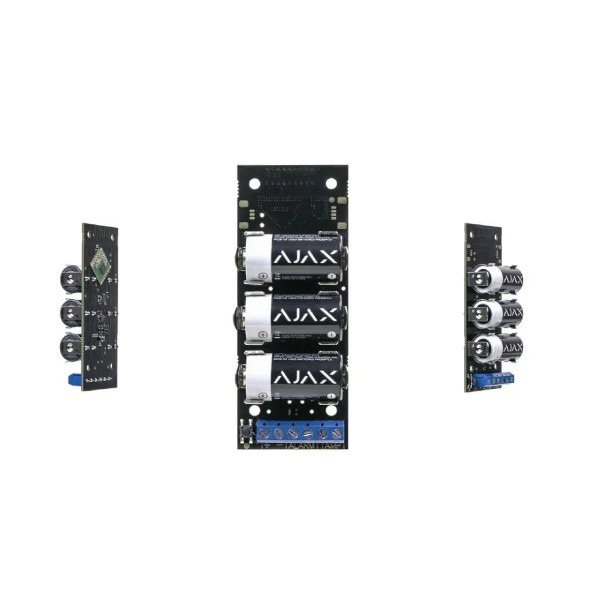

β’ Ajax Transmitter module
β’ 3 Γ CR123A batteries (pre-installed)
β’ Installation kit
Professional Security Solution
The Ajax Transmitter Module provides flexible system expansion by enabling integration of wired third-party devices into a wireless Ajax security system. It is ideal for upgrading existing installations or combining multiple technologies into a single platform.
Security Expert Online supplies professional Ajax integration solutions trusted across South Africa.
