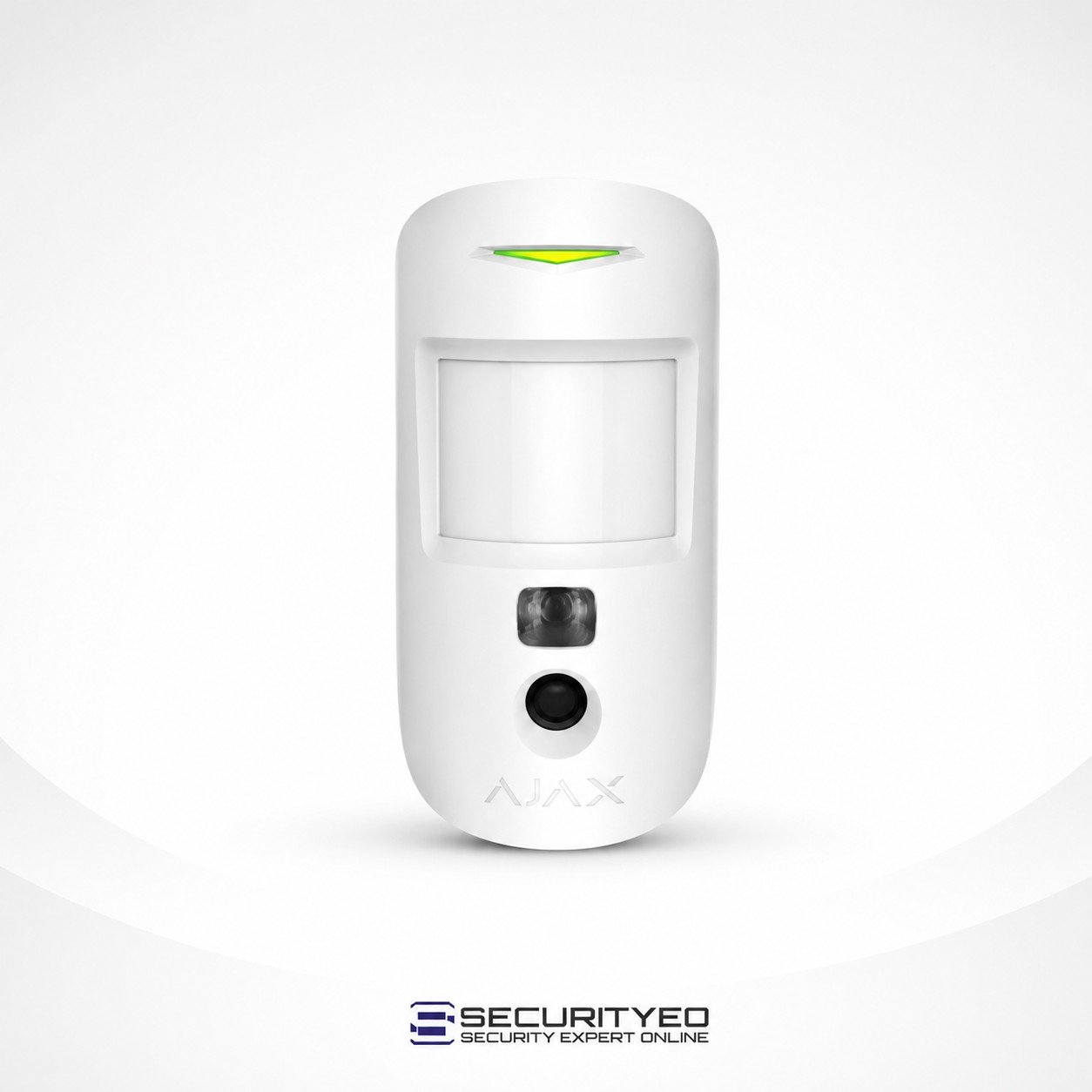

Ajax MotionCam HDR (PhOD) Jeweller White

Ajax MotionCam HDR (PhOD) Jeweller White

The ajax motioncam hdr is a wireless indoor motion detector that combines accurate motion detection with visual alarm verification. Equipped with a built-in camera, the detector captures images when motion is detected and can also provide Photo on Demand functionality for instant event verification.

Designed for residential and commercial security systems, it helps reduce false alarms while providing users and monitoring centres with visual confirmation of security events.

Detection Technology

The MotionCam HDR uses a high-performance PIR sensor to detect human movement while filtering out common causes of false alarms.

Features include:

• Motion detection distance up to 12 m
• SmartDetect false alarm prevention algorithm
• Adjustable sensitivity levels
• Temperature compensation for reliable detection
• Motion detection speed from 0.3 to 2.0 m/s

Detection Angles:

• Horizontal: 88.5°
• Vertical: 80°

Pet Immunity:

• Weight up to 20 kg
• Height up to 50 cm

Wireless Communication

The detector communicates using Ajax Jeweller and Wings wireless technologies.

Jeweller Technology Features:

• Two-way communication
• Encrypted data transmission
• Dynamic encryption keys
• Anti-jamming protection
• Instant event notifications
• Remote configuration through Ajax apps

Wireless Range:

• Up to 1,700 m in open space under optimal conditions

Wings Technology provides secure transmission of photo verification images to the Ajax hub.

Security Protection

The MotionCam HDR incorporates advanced anti-sabotage and security mechanisms.

Protection Features:

• Tamper alarm notification
• Device authentication
• Encrypted communication
• Radio frequency hopping against interference and jamming
• Communication loss detection within 36 seconds

These features ensure reliable operation in professional security installations.

Power Supply

The detector operates using:

• 2 × CR123A batteries (pre-installed)
• 3 V power supply

Battery Life:

• Up to 4 years under normal operating conditions

Environmental Monitoring

The detector includes temperature compensation technology to maintain accurate motion detection across changing environmental conditions.

Operating Temperature:

• -10°C to +40°C

Operating Humidity:

• Up to 75%

Device Specifications

• Motion detection distance: Up to 12 m
• Motion detection angles: 88.5° horizontal, 80° vertical
• Camera viewing angle: 90°
• Photo resolution:

• 640 × 480 px
• 320 × 240 px
• 160 × 120 px
  • Photo on Demand support
  • Photo by alarm support
  • Photo by scenario support
  • IR backlight for night photography
  • Recommended installation height: 2.4 m
  • Wireless range: Up to 1,700 m
  • Protection class: IP50
  • Dimensions: 135 × 70 × 60 mm
  • Weight: 167 g
  • Colour: White
  • Certification: Compliance with applicable Ajax standards

Compatibility

Compatible Ajax Hubs:

• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• Hub Hybrid (2G)
• Hub Hybrid (4G)

Compatible Range Extenders:

• ReX 2

Complete Set

• MotionCam HDR (PhOD) Jeweller White
• SmartBracket mounting panel
• Installation kit
• 2 × CR123A batteries (pre-installed)
• Quick Start Guide

Professional Security Solution

The Ajax MotionCam HDR (PhOD) Jeweller White provides accurate motion detection combined with instant visual verification, allowing users and monitoring companies to assess alarm events quickly and confidently. Its long wireless range, advanced anti-sabotage protection, and Photo on Demand functionality make it an ideal addition to modern Ajax security systems.

Available from Security Expert Online.
