AJAX Motion Protect Plus Black
R1 692,80
The Ajax MotionProtect Plus Black is an advanced ajax motion detector featuring dual technology detection with PIR and microwave sensors. Designed for indoor environments, it delivers accurate intrusion detection even in challenging conditions such as air conditioners, fireplaces, and light interference.
• Motion detection range up to 12 m
• Dual technology: PIR + 24 GHz microwave sensor
• Wireless communication up to 1,200 m
• Pet immunity up to 20 kg
• Battery life up to 5 years
Professional security solutions available from Security Expert Online.
10 in stock
198220-02-BL1
Additional Information
Additional information
| Weight | 0,200 kg |
|---|---|
| Dimensions | 11,5 × 7,5 × 6,4 cm |
| Brand | Ajax Security |
| Color | Black |
Description

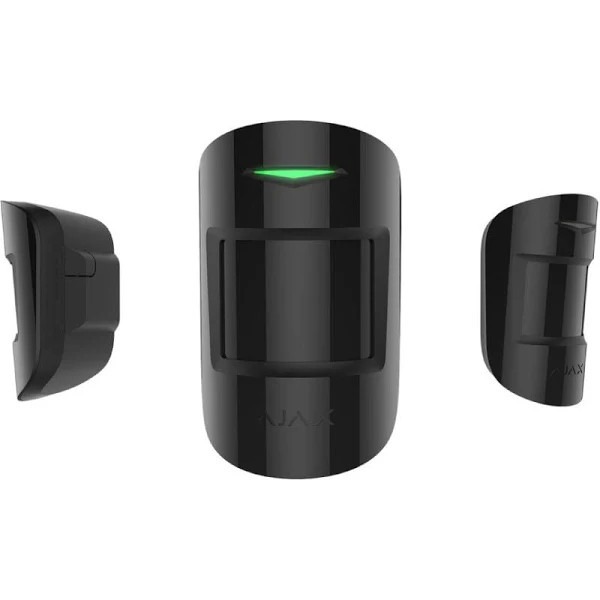

Ajax MotionProtect Plus Black
The Ajax MotionProtect Plus Black is a wireless ajax motion detector designed to provide reliable indoor intrusion detection. By combining a PIR sensor with a 24 GHz microwave sensor, the device ensures accurate detection while reducing false alarms caused by environmental interference.
This detector is ideal for rooms with air conditioning systems, fireplaces, or areas affected by light flickering, glare, or reflections.
Detection Technology
This ajax motion detector uses a dual detection system that combines:
• Passive Infrared (PIR) sensor
• 24 GHz microwave sensor
The PIR sensor detects thermal changes, while the microwave sensor confirms motion, ensuring accurate alarm verification and reducing false triggers.
Wireless Communication
The detector communicates using Ajax Jeweller radio technology.
• Communication range up to 1,200 m in open space
• Two-way communication with the hub
• Operating frequency: 868.0 – 868.6 MHz
• Self-adjusting RF output power up to 20 mW
• AES encryption for secure data transmission
This ensures stable and secure signal transmission within the security system.
Security Protection
The device includes advanced anti-sabotage features:
• Fraud protection
• Jamming detection
• Tamper resistance
• Remote configuration and testing
These features help protect the system from interference and unauthorised access.
Power Supply
• Power supply: CR123A battery (3 V)
• Battery life: Up to 5 years
The long battery life ensures reliable operation with minimal maintenance.
Environmental Monitoring
The detector includes a built-in temperature sensor, allowing monitoring of environmental conditions within the protected space.
Device Specifications
• Detection distance: Up to 12 m
• Detection angles: 88.5° horizontal / 80° vertical
• Recommended installation height: 2.4 m
• Sensitivity: Adjustable (3 levels)
• Pet immunity: Up to 20 kg / 50 cm
• Operating temperature: -10°C to +40°C
• Humidity: Up to 75%
• Dimensions: 110 × 65 × 50 mm
• Weight: 96 g
• Certification: Grade 2, CE
Compatibility
Compatible with:
• All Ajax hubs
• Ajax range extenders
• ocBridge Plus
• uartBridge
Complete Set
• MotionProtect Plus motion detector
• SmartBracket mounting panel
• CR123A battery (pre-installed)
• Installation kit
• User guide
Professional Security Solution
The Ajax MotionProtect Plus Black forms part of a professional wireless security system, providing accurate motion detection in complex indoor environments.
Security Expert Online supplies reliable Ajax security devices designed for residential and commercial protection across South Africa.
