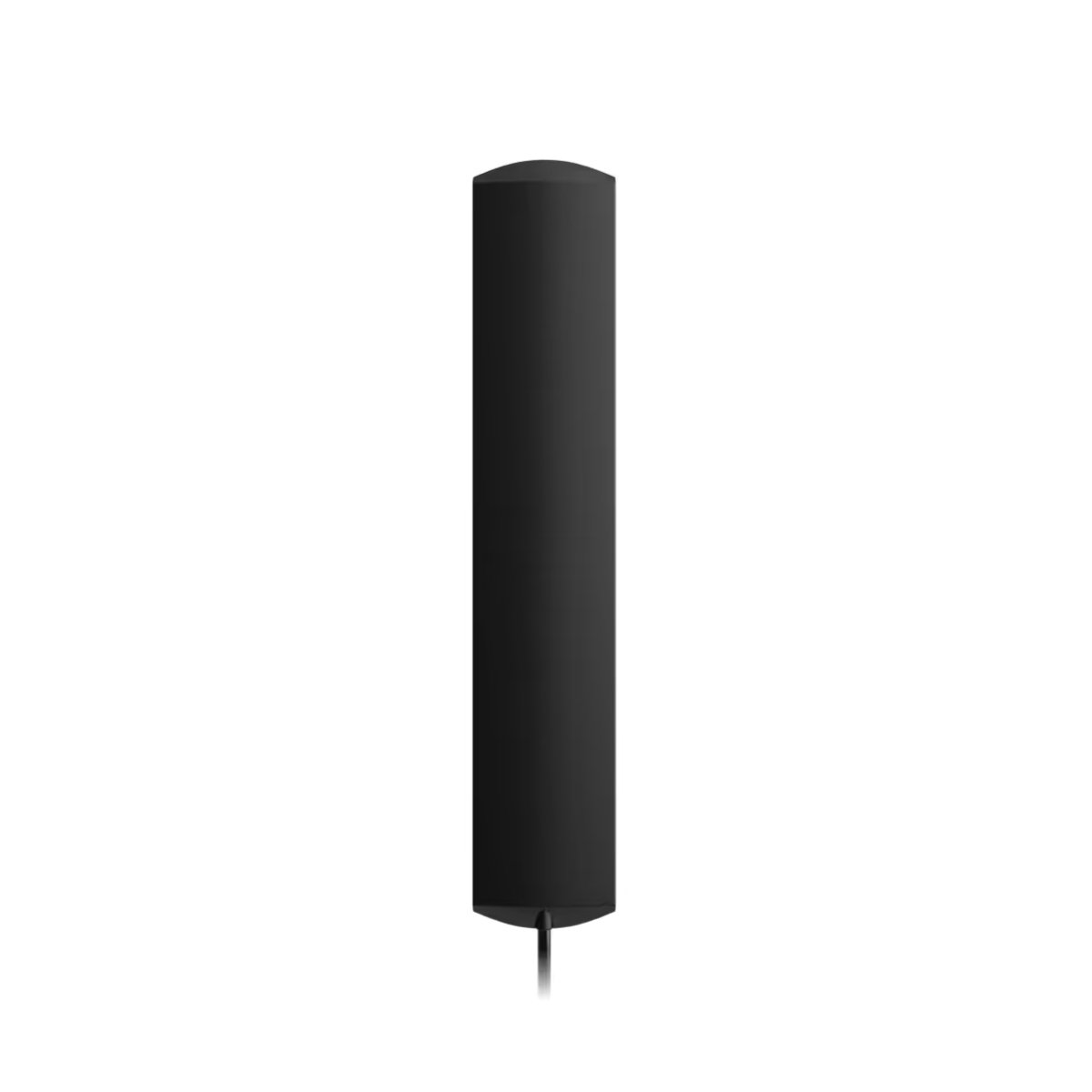

Ajax ExternalAntenna for Hub BP Jeweller
R438,83
The Ajax ExternalAntenna for Hub BP Jeweller is a dedicated external antenna designed to improve mobile and wireless communication performance for Ajax Hub BP systems. This Ajax Hub BP antenna enhances LTE, Jeweller, and Wings signal strength in remote, off-grid, or low-reception environments.
Using the included 3 m SMA cable, installers can position the antenna away from metal enclosures or interference sources for improved signal reliability.
• Designed for Ajax Hub BP Jeweller
• Supports LTE, Jeweller, and Wings communication
• Improves signal strength and communication stability
• 3 m SMA cable for flexible installation
• Built-in tamper detection
• Ideal for off-grid and remote installations
• Suitable for metal cabinets and reinforced structures
Professional Ajax communication accessories available from Security Expert Online.
5 in stock
19104117-290-NC
Additional Information
Additional information
| Weight | 0,100 kg |
|---|---|
| Dimensions | 12,00 × 3,0 × 1,0 cm |
Description
Ajax ExternalAntenna for Hub BP Jeweller
The Ajax ExternalAntenna for Hub BP Jeweller is a dedicated communication accessory designed to improve the wireless and mobile signal performance of the Ajax Hub BP Jeweller. This Ajax Hub BP antenna allows installers to position the antenna up to 3 metres away from the hub using the included SMA cable.
Because the Hub BP relies on SIM-based communication, stable LTE connectivity is essential for reliable alarm transmission, device communication, and image delivery. The ExternalAntenna improves communication reliability in locations where signal reception is weak or obstructed.
Improved Signal Strength and Reliability
The ExternalAntenna is designed to strengthen communication performance for Ajax Hub BP installations.
The antenna supports:
• 2G mobile networks
• 3G mobile networks
• LTE communication
• Ajax Jeweller wireless communication
• Ajax Wings image transmission
As a result, the hub maintains more stable communication with monitoring systems and Ajax devices.
Ideal for Difficult Installation Environments
The Ajax Hub BP antenna is especially useful in locations where wireless or mobile reception is restricted.
Recommended installation environments include:
• Steel enclosures and metal cabinets
• Shipping containers and industrial sites
• Rural and remote installations
• Reinforced concrete buildings
• Basements and utility rooms
• Concealed hub installations
Consequently, installers can maintain reliable communication even when the hub itself is positioned in protected or hidden areas.
Flexible External Placement
The included 3 m SMA cable allows flexible antenna positioning for improved reception.
Installation benefits include:
• Position antenna away from interference
• Improve LTE signal reception
• Flexible mounting options
• Better communication reliability
• Optimised wireless performance
This flexibility helps installers locate the strongest available signal without relocating the hub itself.
Supports Ajax Jeweller and Wings Technologies
The antenna supports all communication channels used by the Hub BP Jeweller system.
Supported technologies include:
• LTE mobile communication
• Ajax Jeweller device communication
• Ajax Wings image transmission for MotionCam devices
This ensures reliable operation across the full Ajax ecosystem.
Built-In Tamper Detection
The ExternalAntenna includes tamper monitoring to help protect system integrity.
Security features include:
• Cable cut detection
• Cable disconnection alerts
• Instant tamper notifications
• Enhanced installation security
If interference or tampering occurs, the Ajax system immediately notifies users and monitoring stations.
Rugged Design for Professional Installations
The antenna is designed for demanding environments and professional security installations.
Design features include:
• Compact rugged construction
• Industrial installation suitability
• Wide operating temperature range
• Reliable outdoor and indoor performance
• Stable long-term operation
This makes the antenna suitable for industrial, agricultural, commercial, and remote installations.
Professional Ajax Communication Solution
At Security Expert Online, we supply professional Ajax accessories trusted by installers and security professionals across South Africa.
The Ajax ExternalAntenna provides:
• Improved Hub BP communication stability
• Enhanced LTE reception
• Reliable Ajax wireless performance
• Flexible installation options
• Professional-grade communication support
Key Features
• Designed specifically for Ajax Hub BP Jeweller
• Enhances LTE, Jeweller, and Wings communication
• Supports 2G / 3G / LTE communication
• 3 m SMA cable included
• Built-in tamper detection
• Wideband frequency support
• Suitable for difficult installation environments
• Ideal for off-grid and remote systems
Technical Specifications
• Compatibility: Ajax Hub BP Jeweller
• Supported channels: 2G / 3G / LTE, Jeweller, Wings
• Frequency ranges: 698–960 MHz, 1 710–2 690 MHz
• Connector type: SMA
• Cable length: 3 m

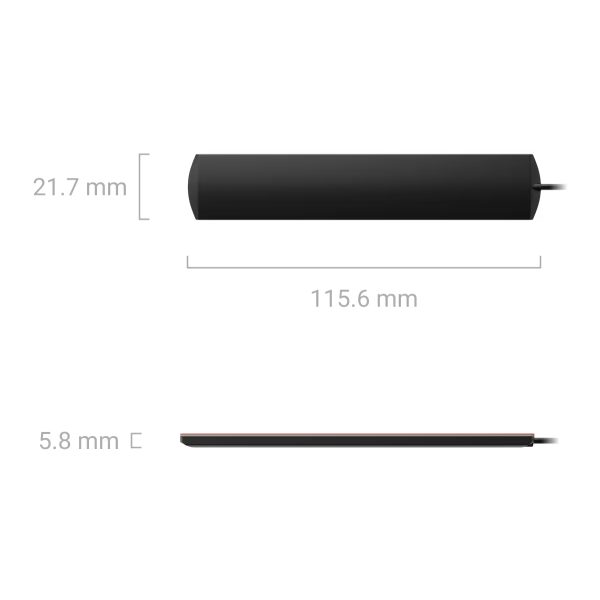

• Dimensions: 115.6 × 21.7 × 5.8 mm
• Weight: ± 41 g
• Operating temperature: –40 °C to +85 °C
• Humidity tolerance: Up to 95%
Ideal Use Cases
Ideal for:
• Off-grid Ajax installations
• Rural security systems
• Steel enclosure installations
• Container security systems
• Reinforced concrete structures
• Concealed Hub BP installations
• Industrial and agricultural security sites
Complete Set
• Ajax ExternalAntenna
• 3 m SMA cable (attached)
• Mounting kit
• Quick Start Guide
