Ajax BulletCam 8MP 4mm White

Ajax BulletCam 8MP 4mm White

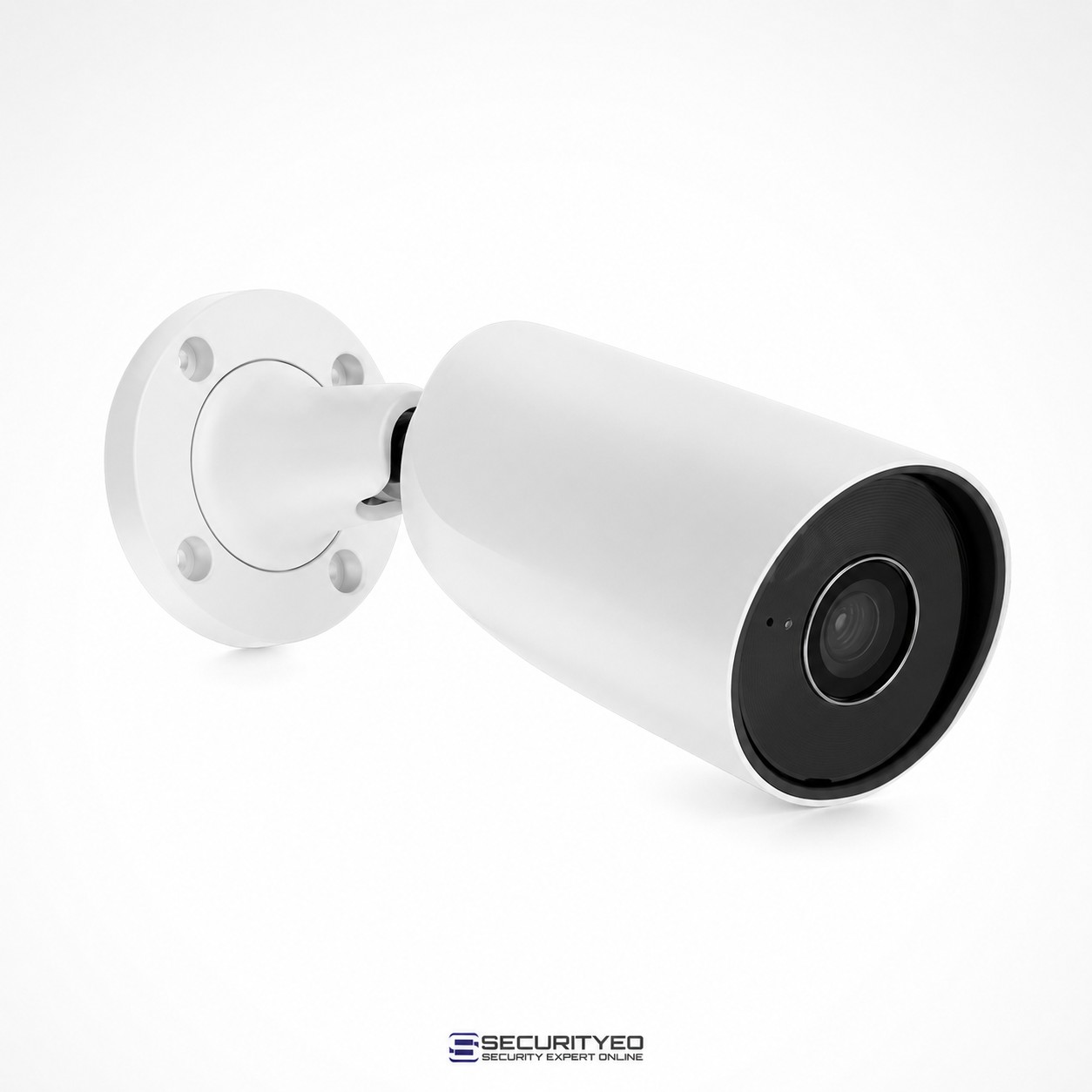

The Ajax BulletCam 8MP 4mm White is a wired IP security camera designed for high-resolution video surveillance within Ajax security systems. Its 8MP image sensor delivers up to 3840 × 2160 resolution, while the 4mm fixed lens provides a focused 75°–85° viewing angle.

Additionally, the camera combines AI-powered object recognition, encrypted video transmission and Ajax alarm visual verification. Therefore, users can integrate video surveillance and intrusion protection within a single Ajax ecosystem.

High-Resolution 8MP Video

The BulletCam delivers video resolution up to 3840 × 2160 at 20 frames per second, providing detailed 4K UHD surveillance footage.

The 4mm fixed lens offers a 75°–85° viewing angle, making it suitable for monitoring entrances, driveways, perimeter areas and other focused surveillance zones.

Furthermore, True WDR image processing helps maintain image clarity in scenes with challenging differences between bright and dark areas.

AI Object Detection

The camera uses AI-powered recognition to identify:

• Humans
• Vehicles
• Pets

As a result, the system can distinguish relevant objects and improve event filtering.

The camera can also trigger events through:

• Motion detection
• AI recognition
• Detector alarms
• Automation scenarios

Therefore, installers can integrate video monitoring with broader Ajax security automation.

Smart IR Night Vision

The camera includes infrared illumination with a range of up to 50 metres.

Consequently, the BulletCam can continue monitoring areas during low-light and nighttime conditions.

The system automatically manages day and night switching for continuous surveillance.

Ajax BulletCam White Video Communication

The camera uses proprietary JetSparrow peer-to-peer video streaming technology for fast and secure video transmission.

In addition, Ajax Cloud supports communication between the camera, Ajax NVR and Ajax apps.

The system provides:

• JetSparrow peer-to-peer streaming
• Instant live view
• Dual streaming for rapid preview
• Fast archive navigation
• Video clip export
• Up to five simultaneous live-view channels
• Up to 200 users

Visual Verification Of Ajax Alarms

The BulletCam can provide high-resolution visual verification when Ajax alarms occur.

As a result, users can move directly from an alarm notification to the relevant camera footage in the Ajax app.

Furthermore, camera synchronisation with security modes allows users to control surveillance behaviour together with the wider Ajax system.

Security Protection

Ajax incorporates multiple security technologies to protect camera communication and user access.

These include:

• Passwordless camera authentication using an mTLS handshake
• TLS-encrypted video streaming
• Account protection through passcodes and supported biometric security
• Two-factor authentication
• Session control
• Owner-controlled access to recorded media
• Real-time privacy controls through Ajax apps
• Built-in accelerometer for detecting impacts or dismantling attempts

Additionally, Ajax uses components from approved vendors that comply with NDAA requirements.

Video Compression

The camera supports:

• H.264
• H.265

Its network connection supports a bitrate of up to 100 Mbps full-duplex.

Therefore, the system can transmit high-resolution surveillance video efficiently across compatible network infrastructure.

Storage Options

Users can store video recordings through:

• Ajax NVR
• MicroSD card installed directly in the camera

The BulletCam supports microSD cards with capacities of up to 256GB.

Importantly, the camera can operate without an Ajax NVR when a compatible microSD card is installed.

Built-In Microphone

The camera includes a built-in digital microphone.

Therefore, compatible installations can capture audio together with surveillance video where appropriate.

Power Supply

The BulletCam supports two power options:

• 12V DC: ±20%, 1A
• Maximum Power Consumption: Up to 15W
• PoE: IEEE 802.3at/af

PoE allows compatible network infrastructure to provide both network connectivity and power through the Ethernet connection.

Network Connection

The camera connects through Ethernet and supports:

• TCP/IP network communication
• Up to 100 Mbps network connection
• PoE IEEE 802.3at/af
• JetSparrow video transmission

As a result, installers can integrate the camera into compatible wired network infrastructure.

Device Specifications

• Camera Type: Wired security IP camera
• Resolution: 8MP
• Maximum Resolution: 3840 × 2160 at 20 fps
• Lens: 4mm fixed lens
• Viewing Angle: 75°–85°
• Night Vision: Automatic day/night switching
• IR Illumination: Up to 50m
• Image Processing: True WDR
• Video Compression: H.265 and H.264
• Network Bitrate: Up to 100 Mbps full-duplex
• Simultaneous Live View: Up to 5 channels
• User Access: Up to 200 users
• Object Recognition: Humans, vehicles and pets
• Storage: Ajax NVR or microSD card
• MicroSD Capacity: Up to 256GB
• Audio: Built-in digital microphone
• Ethernet: PoE IEEE 802.3at/af
• Power Supply: 12V DC ±20%, 1A
• Maximum Power Consumption: Up to 15W
• Enclosure Protection: IP65
• Dimensions: 197.5 × 76 × 76mm
• Weight: 550g
• Operating Temperature: -30°C to +60°C
• Operating Humidity: Up to 95%
• Colour: White
• Compliance: CE, RoHS and NDAA

Compatibility

The Ajax BulletCam 8MP 4mm White works with Ajax hubs and compatible Ajax video infrastructure.

Compatible Ajax hubs include:

• Ajax Hub
• Ajax Hub Plus
• Ajax Hub 2 (2G)
• Ajax Hub 2 (4G)
• Ajax Hub 2 Plus
• Ajax Hub Hybrid

The system supports up to 200 cameras within one Ajax system, depending on system configuration.

It can also operate with:

• Ajax NVR
• Compatible microSD storage

Furthermore, Ajax Superior, Fibra and Baseline product lines are mutually compatible within supported Ajax system configurations.

Complete Set

The package includes:

• Ajax BulletCam 8MP 4mm White
• Installation template
• Installation kit
• Quick start guide

Professional Security Solution

The Ajax BulletCam 8MP 4mm White combines 4K UHD video surveillance, AI object recognition, long-range infrared illumination and Ajax alarm visual verification in a professional wired security camera.

Additionally, JetSparrow technology and encrypted communication help integrate video surveillance securely into the wider Ajax ecosystem. Its white enclosure also provides a clean installation option for light-coloured walls, ceilings and exterior surfaces.
